In this section we finally start to get to the heart of the matter. We will start to introduce the graphical representation we use and then explain how we can use the value iteration algorithm to solve a POMDP problem. Once this is established, we can delve into the particular algorithms that have been used to solve POMDPs.

In `CO-MDP`s our problem is to find a mapping from states to
actions; in POMDPs our problem is to find a mapping from
probability distributions (over states) to actions. We will refer to
a probability distribution over states as a belief state and the
entire probability space (the set of all possible probability
distributions) as the belief space.

The figure below introduces how we will represent the belief space.
To keep things as simple as possible, we will use a two state
POMDP as our running example. For a two state POMDP
we can represent the belief state with a single number. Since a
belief state is a probability distribution, the sum of all
probabilities must sum to `1`. With a two state
POMDP, if we are given the probability for being in one of
the states as being '`p`', then we know that the probability of
being in the other state must be '`1-p`'. Therefore the entire
space of belief states can be represented as a line segment. The
figure below shows this, though we have made the line segment have a
significant width.

### 1D belief space for a 2 state POMDP

The thickness of this line will serve only to help clarify later
explanations; the belief space is a single line segment. The belief
space is labeled with a `0` on the left and a `1` on the
right. This is the probability we are in state `s1`. To the
far left is the belief state where there is no chance that we are in
state `s1`, which means that we are certain (probability =
`1`) that we are in state `s2`. The far right is when
we are certain we are in state `s1` with no chance of being in
state `s2`. Note that although all of our examples use a two
state problem, all of the insights directly apply for higher
dimensional spaces; lines in these examples would become hyper-planes
in higher dimensional examples.

Let us go back to the updating of the belief state discussed earlier.
Assume we start with a particular belief state `b` and we take
action `a1` and receive observation `z1` after taking
that action. Then our next belief state is fully determined. In
fact, since we are assuming that there are a finite number of actions
and a finite number of observations, given a belief state, there are a
finite number of possible next belief states. These correspond to
each combination of action and observation. The figure below shows
this process graphically for a POMDP with two states
(`s1` and `s2`), two actions (`a1` and
`a2`) and three observations (`z1`, `z2` and
`z3`). The starting belief state is the big yellow dot and the
resulting belief states are the smaller black dots. The arcs represent
the process of transforming the belief state.

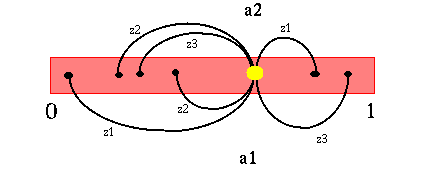

### 1D belief space for a 2 state POMDP

Note that this shows all possible resulting belief states. Since
observations are probabilistic, each resulting belief state has a
probability associated with it. More clearly stated: if we take an
action and get an observation, then we know with certainty what our
next belief state is. However, before we decide to take an action,
each resulting belief state has a particular probability associated
with it and there are as many possible next belief states as there are
observations (for a given action). Note that for a given action, the
next belief state probabilities must sum to `1`. Also, it is
possible that different action-observation combinations could lead to
the same belief state, so there may be fewer next belief states than
we first mentioned.

It turns out that the process of maintaining the belief state is
Markovian; the next belief state depends only on the current belief
state (and the current action and observation). In fact, we can
convert a discrete POMDP problem into a continuous space
`CO-MDP` problem where the continuous space is the belief
space. The transitions of this new continuous space `CO-MDP`
are easily derived from the transition and observation probabilities
of the POMDP (remember: no formulas here). What this means
is that we are now back to solving a `CO-MDP` and we can use
the value iteration (VI) algorithm. However, we will need to adapt the
algorithm some.

The big problem using value iteration here is the continuous state
space. In `CO-MDP` value iteration we could simply maintain a
table with one entry per state. The value of each state is stored in
the table and we have a nice finite representation of the value
function. Since we now have a continuous space, the value function
could be some arbitrary function over belief space. The figure below
shows a sample value function over belief space. Here '`b`' is
a belief space and the value function, '`V(b)`', is a function
of '`b`'. Thus our first problem is how we can easily represent
this value function.

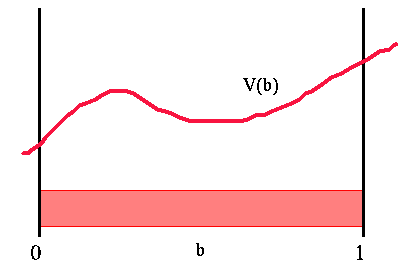

### Value function over belief space

Fortunately, the POMDP formulation imposes some nice
restrictions on the form of the solutions to the continuous space
`CO-MDP` that is derived from the POMDP. The key
insight is that the finite horizon value function is piecewise linear
and convex (`PWLC`) for every horizon length. This means that
for each iteration of value iteration, we only need to find a finite
number of linear segments that make up the value function.

The figure below shows a sample value function over belief space for a POMDP. The vertical axis is the value, while the horizontal axis is the belief state. The POMDP value function is the upper surface of a finite number of linear segments. We have colored the segments for a reason to be explained later.

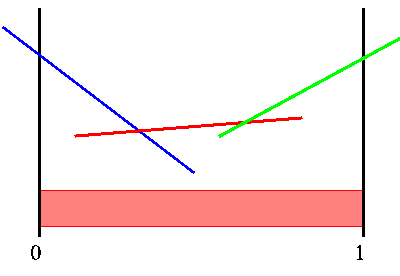

### Sample PWLC value function

These linear segments will completely specify the value function (over belief space) that we desire. These amount to nothing more than lines or, more generally, hyper-planes through belief space. We can simply represent each hyper-plane with a vector of numbers, which are the coefficients of the equation of the hyper-plane. The value at any given belief state is found by plugging in the belief state into the hyper-planes equation. If we represent the hyper-plane as a vector (i.e., the equation coefficients) and each belief state as a vector (the probability at each state) then the value of a belief point is simply the dot product of the two vectors. (This is dangerously close to a formula, isn't it?)

We can now represent the value function for each horizon as a set of vectors. To find the value of a belief state, we simply find the vector that has the largest dot product with the belief state.

Instead of linear segments over belief space, another way to view the function is that it partitions belief space into a finite number of segments. We will be using both the value function and this partitioning representation to explain the algorithms. Keep in mind that they are more or less interchangeable.

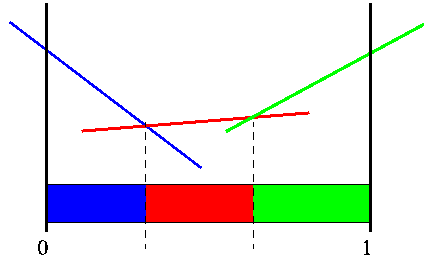

### Sample PWLC function and its partition of belief space

Now let's return to the value iteration algorithm. We have a
continuous space `CO-MDP` and we were discussing adapting value
iteration to this. The first problem we encountered was how to
represent a value function over a continuous space. Since each
horizon's value function is PWLC, we solved this problem, by
representing the value function as a set of vectors (coefficients of
the hyper-planes).

Unfortunately, the continuous space causes us further problems. In
each iteration of value iteration in the discrete state space, we
would find a state's new value by looping over all the possible next
states. However, for continuous state `CO-MDP`s it is
impossible to enumerate all possible states (can you say "uncountably
infinite"?).

This is the main obstacle that needs to be overcome and the specific
algorithms described later are all different approaches to solve this
difficulty. Once we overcome this difficulty, the problem is solved
and value iteration works the same here as in the discrete
`CO-MDP` case. The problem now boils down to one stage of
value iteration; given a set of vectors representing the value
function for horizon '`h`', we just need to generate the set of
vectors for the value function of horizon '`h+1`'
